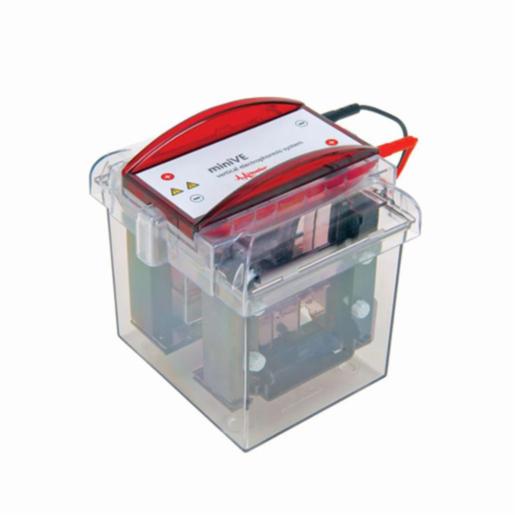

Hoefer miniVE Integrated Vertical Protein Electrophoresis (Complete unit) SE300-10A-1.0

The SE300 miniVE Integrated Vertical Protein Electrophoresis (Complete unit) SE300-10A-1.0 is a compact vertical protein electrophoresis system that performs both gel electrophoresis and electrotransfer (blotting) in a single unit. It is supplied as a complete unit with accessories for casting or running gels and is intended for protein separation and transfer workflows in laboratory settings. The system supports use of precast gels and cast gels and is designed to produce straight lanes and sharp bands with minimal buffer consumption.

Key Features:

• Model: SE300-10A-1.0 complete unit (includes gel modules, gaskets, glass plates, combs, spacers, safety lid and related accessories)
• Glass plate size: 10 x 10.5 cm (also compatible with 10 x 8 cm plates)
• Comb/thickness option supplied: 1.0 mm (10-well combs included)
• Maximum power settings: 1000 V, 500 mA, 50 W
• Maximum temperature: 45°C; operating range 4 to 40°C, humidity up to 80%
• Unit dimensions (W x H x D): 32 x 37 x 14 cm; unit weight: 2.20 kg
• Electrotransfer: transfers up to 4 gels in ~45 minutes using only 300 mL buffer with optional blot module

Advantages:

• Performs both electrophoresis and electrotransfer in one compact unit, simplifying workflow
• Low buffer consumption for transfers (300 mL) reduces reagent use and waste
• Passive cooling yields straight lanes and sharp bands for improved resolution
• Compatible with both cast and a variety of precast gels for flexible laboratory use
